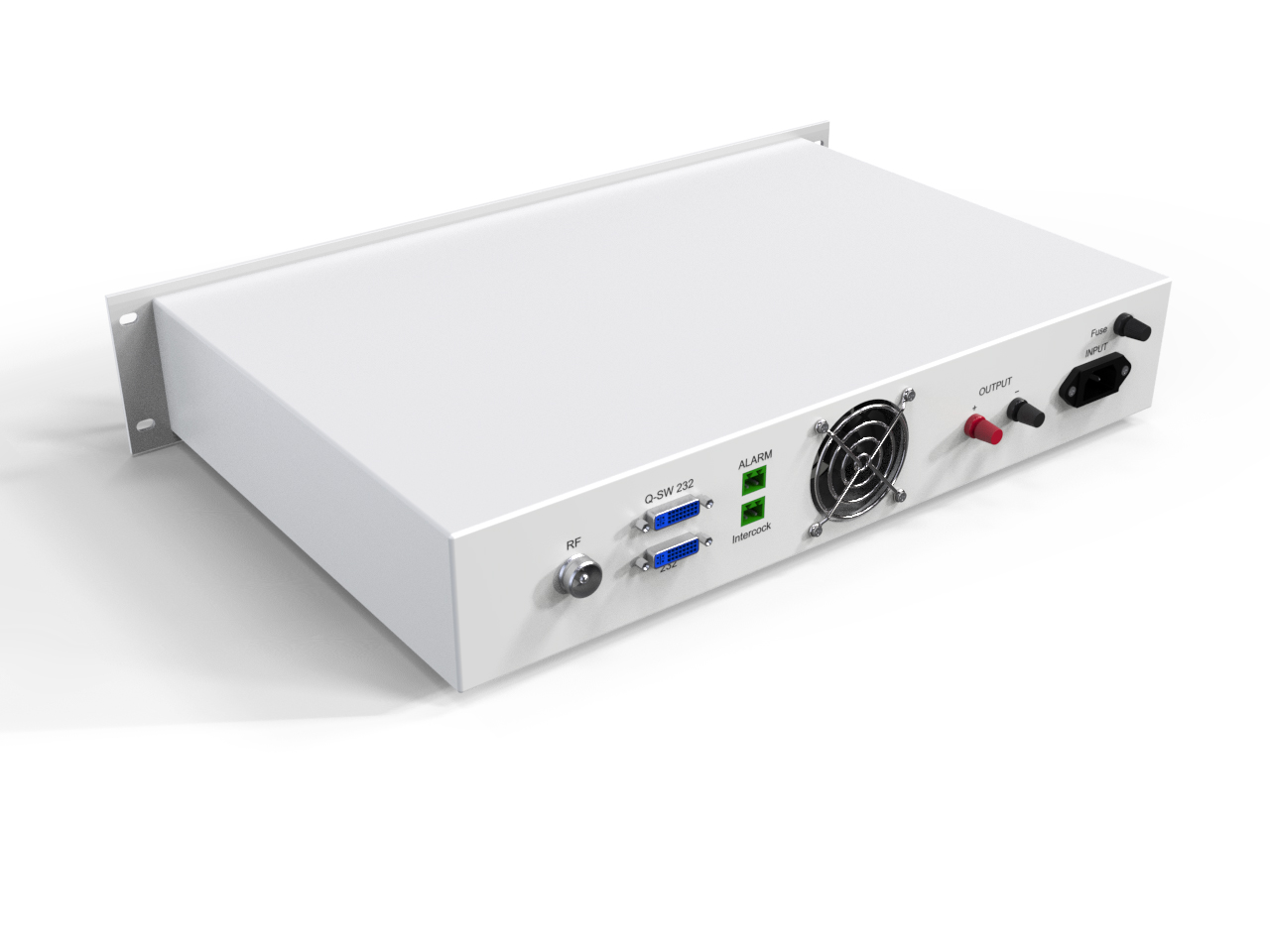

The RLQ series of power supplies integrates semiconductor laser power supplies with acousto-optical Q-switched power supplies. Utilizing centralized management technology with single-input multi-selection control, they enable human-machine interaction and digital management. Aesthetics and durability are incorporated into their technical specifications, presenting a sleek and elegant design. The units feature a 2U standard chassis size.
Power supply parameter specifications
- Input voltage：120-240V 50-60HZ
- Output current：10-30A
- Continuous adjustable, adjustment per 1A
- Output voltage：24V Adaptive
- Output frequency：1-600Hz Continuous adjustable, adjustment every 1 Hz
- Trigger Model：INT/EXT TTL
- Remote control method：232/485
Parameters of Acoustic-Optical Q-switched Power Supply
- Input voltage：120-240V 50-60Hz
- Signal input：TTL
- Impedance：50Ω Frequency：27.125MHz
- Radio frequency output power：50W
- Modulation Frequency：0.5KHz-50KHz continuously adjustable
- Primary pulse suppression：90-900us adjustable
- optical pulse width：3-20us
- Remote control method：232/485
